Video Distribution System

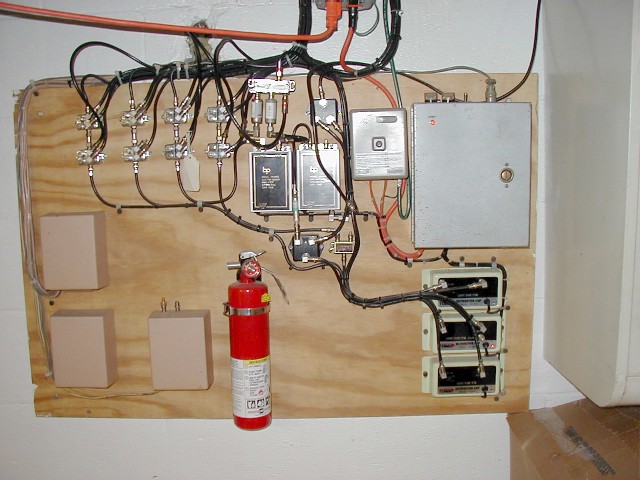

Not as spectacular but still cool. My video distribution system routes antenna, cable, cable box, and VCR to every room in my house.  Here's the detail stuff:


My Phone Control System


Line Distribution Punch Block and Control Circuit

Control  Circuit Power Supply

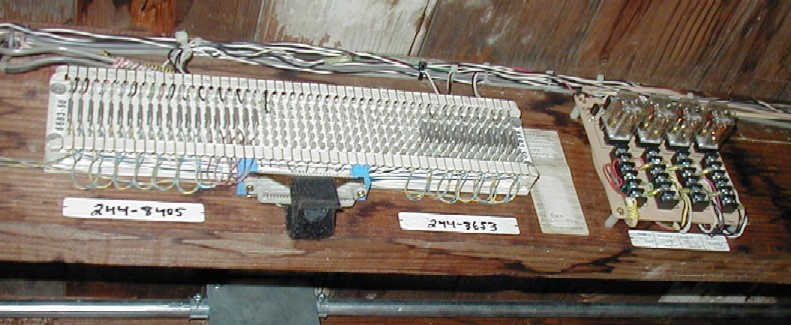

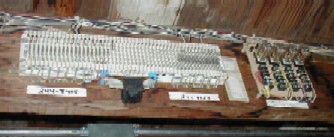

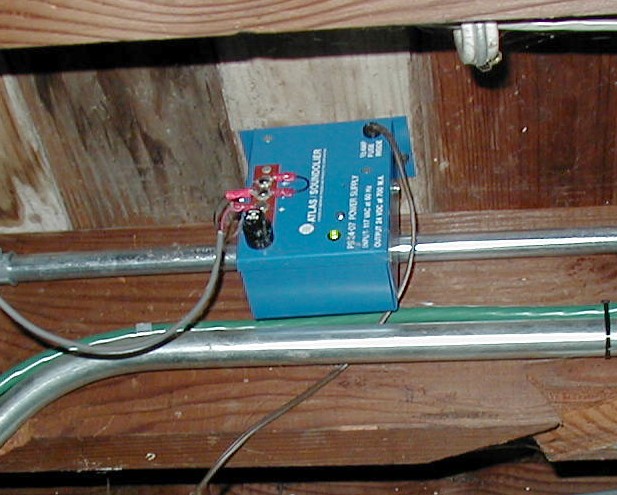

Also not as spectacular as the Inverter but also still pretty cool. This little project enables me to control which of two phone lines is connected to my computer, fax, and the in-law house in the back.  It also enables me to completely turn the phone system off to the in-law house. This is all controllable from my desk through this system.  The picture on the left shows the phone line distribution punch block (left side of picture) and the actual control circuit (right side of picture).  The picture on the right is the power supply for the control circuit.  And of course, following is the documentation:
